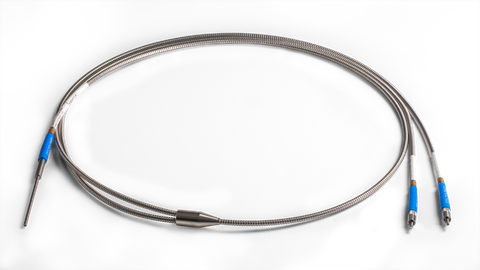

反射･後方散乱ﾌﾟﾛｰﾌﾞは､固体､溶液､粉末等色々なｻﾝﾌﾟﾙからの拡散反射及び鏡面反射､後方散乱､又は蛍光を測定する為のｺﾝﾊﾟｸﾄで多目的ｻﾝﾌﾟﾘﾝｸﾞｵﾌﾟｼｮﾝです｡反射及び後方散乱測定は､ｻﾝﾌﾟﾙの色､外観､及び化学組成に関する定量的な情報を提供できます｡
|
Fiber Core Size |
200um, 400um, 600um |
|
Jacket |
PVDF zip tube, Silicone-coated steel monocoil, Stainless steel BX |
|
Length |
2m |
|
Probe Ferrule Diameter |
3.175 mm (1/8″), 6.35 mm (1/4″) |
|
Wavelength Range |
200nm - 1.1um |
|
model |
Fiber Core Size |
Jacket |
Length |
Probe Ferrule Diameter |
Wavelength Range |
|
R200-7-UV-VIS |
200um |
PVDF zip tube |
2m |
6.35 mm (1/4″) |
200nm - 1.1μm |
|
QR200-7-UV-BX |
200um |
Stainless steel BX |
2m |
6.35 mm (1/4″) |
300nm - 1.1μm |
|
QR200-7-UV-VIS |
200um |
Silicone-coated steel monocoil |
2m |
6.35 mm (1/4″) |
300nm - 1.1μm |
|
RP200-7-UV-VIS |
200um |
PVDF zip tube |
2m |
6.35 mm (1/4″) |
300nm - 1.1μm |
|
R400-7-UV-VIS |
400um |
PVDF zip tube |
2m |
6.35 mm (1/4″) |
300nm - 1.1μm |
|
QR400-7-UV-BX |
400um |
Stainless steel BX |
2m |
6.35 mm (1/4″) |
300nm - 1.1μm |
|
QR400-7-UV-VIS |
400um |
Silicone-coated steel monocoil |
2m |
6.35 mm (1/4″) |
300nm - 1.1μm |
|
R600-7-UV-125F |
600um |
PVDF zip tube |
2m |
3.175 mm (1/8″) |
300nm - 1.1μm |
|
QR600-7-UV125BX |
600um |
Silicone-coated steel monocoil |
2m |
3.175 mm (1/8″) |
300nm - 1.1μm |
|
QR600-7-UV-125F |
600um |
Stainless steel BX |
2m |
3.175 mm (1/8″) |
300nm - 1.1μm |
