The LSM LEDs are controlled by the LDC-1 single channel driver and controller. This controller is required for LED operation.

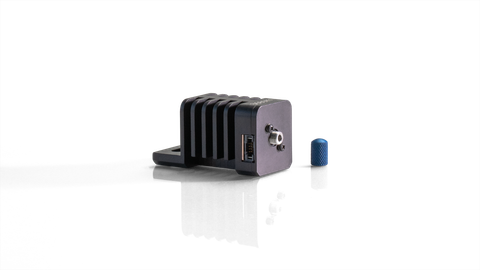

LSM series LED light sources are ideal for fluorescence excitation and other measurements requiring narrowband illumination. The innovative optical design of the LSM LED family provides highly efficient coupling into an optical fiber, ensuring high power for fluorescence excitation where every photon counts.
LSM LEDs are available in discrete wavelengths ranging from 265-880 nm and in a warm white option with color temperature of 3689 K. LSM LEDs accommodate multiple mounting options (DIN rail, optical bench, rack) and are supplied with a rugged plastic case for carrying multiple LEDs and accessories.
- LSM LED options -- UV, Visible, NIR and broadband wavelengths

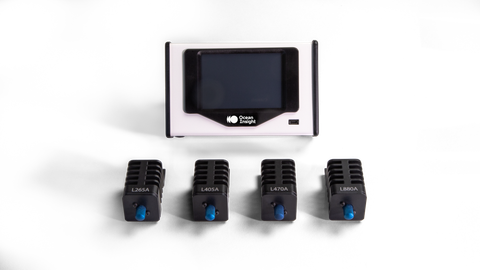

- LED control module -- compact single channel driver and smart controller (LDC-1)
- NIR wavelengths -- shortwave NIR option at 880 nm
- Additional wavelength options -- select from UV (265, 280, 310 and 365 nm) and Visible (405, 470, 533 nm) wavelengths, or purchase with a mix of wavelength models (280, 365, 470 nm and 3689K warm white)
