吸光度及び蛍光ｻﾝﾌﾟﾘﾝｸﾞ用のｷｭﾍﾞｯﾄﾎﾙﾀﾞｰとｾﾙの治具を提供しています｡ﾃﾞｨｽｸﾘｰﾄﾎﾙﾀﾞｰと直接取り付けﾎﾙﾀﾞｰの両方が利用可能であり､分光計､光源､光ﾌｧｲﾊﾞｰとｼｰﾑﾚｽに統合されます｡
ｷｭﾍﾞｯﾄ
ﾌﾟﾗｽﾁｯｸと石英のｷｭﾍﾞｯﾄは､吸光度と蛍光測定に使用できます｡石英ｷｭﾍﾞｯﾄは耐久性があり､用途が広いです｡ﾌﾟﾗｽﾁｯｸｷｭﾍﾞｯﾄは､吸光度測定用の石英に代わるﾒﾝﾃﾅﾝｽの少ない方法です｡

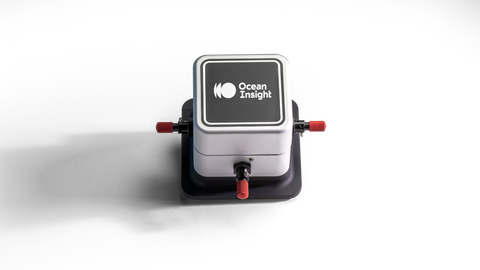

ﾌﾛｰｾﾙ
ﾌﾛｰｲﾝｼﾞｪｸｼｮﾝ分析ｾﾙは､ﾌﾟﾛｾｽﾓﾆﾀﾘﾝｸﾞ､ﾗﾎﾞのｼｽﾃﾑ､及び教育ﾗﾎﾞで使用される流体の吸光度と蛍光測定に最適です｡Zﾀｲﾌﾟのｾﾙは､様々な材料､経路長､及び内部体積単位で利用できます｡
|
|

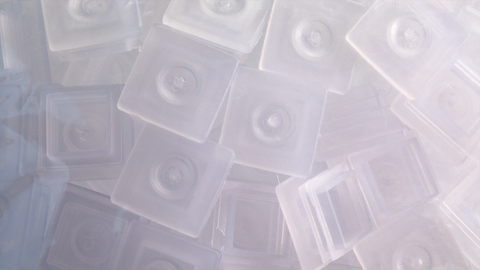

Cuvette Covers |
|
Plastic Cuvettes |
Quartz Cuvettes |
|
Color |
Clear |
Filling Volume |
1.5-3.0 mL |
3.5 mL |
|
Cover Shape |
Square |
Material |
Plastic |
|
|
Use With |
CVD series square cuvettes |
Pathlength |
1 cm |
1 cm |
|
Package Quantity |
100 |
Wavelength Range |
230nm - 900nm |
170nm - 2.7μm |
|

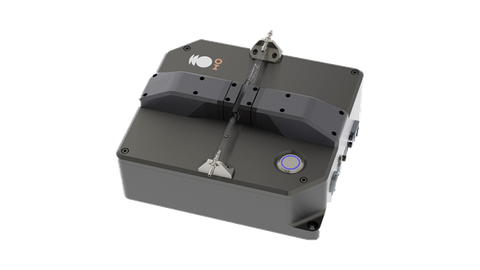

Cuvette Holder |
General Purpose Cuvette Holders |
|
|

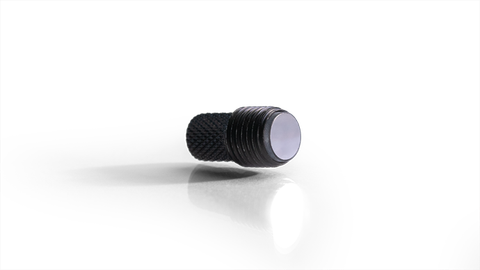

Cuvette holder covers -- anodized black covers fit over cuvettes to block ambient light Mirrored screw plugs -- install in cuvette holders to increase signal in fluorescence setups Compatibility -- designed for use with CUV-series cuvette holders |
Collimating Lenses |
Three 74-UV fused silica lenses (200-2000 nm) |
|
Filter Slot Specification |
Two slots in total. Each slot accepts one 12.5 mm and 25 mm diameter filters. |
|
|
Pathlength |
1 cm |
|
|
Z Dimension Specification |
15 mm |
|
